How to Calculate the Weight of Plastics: A Comprehensive Guide for Multiple Materials

Plastics like Perspex (acrylic), polycarbonate, PVC, polyurethane, polyethylene, HIPS (high-impact polystyrene), ABS, PETG, PVC foam, polypropylene, nylon, and ACM (aluminium composite material) are extensively used in industries ranging from manufacturing to construction. These materials are often shaped into sheets, rods, tubes, or custom-cut designs. Accurately calculating the weight of these plastics is crucial for cost estimation, structural planning, and logistics.

This article explains the methods to calculate the weight of plastics for various shapes, including sheets, squares, circles, rods, and tubes, using their densities and dimensions.

Density of Common Plastics

The density of a material is its weight per unit volume, typically expressed in g/cm^³ or kg/m^³. Below is a table of approximate densities:

Weight Calculation Formula

The weight of an object can be calculated as:

Weight = Volume × Density

Where:

• Volume is the amount of space the object occupies.
• Density is the material’s mass per unit volume.

Convert all measurements into consistent units (e.g., cm^³ for g/cm³ or m^³ for kg/m^³) before calculating.

Shape-Based Calculations

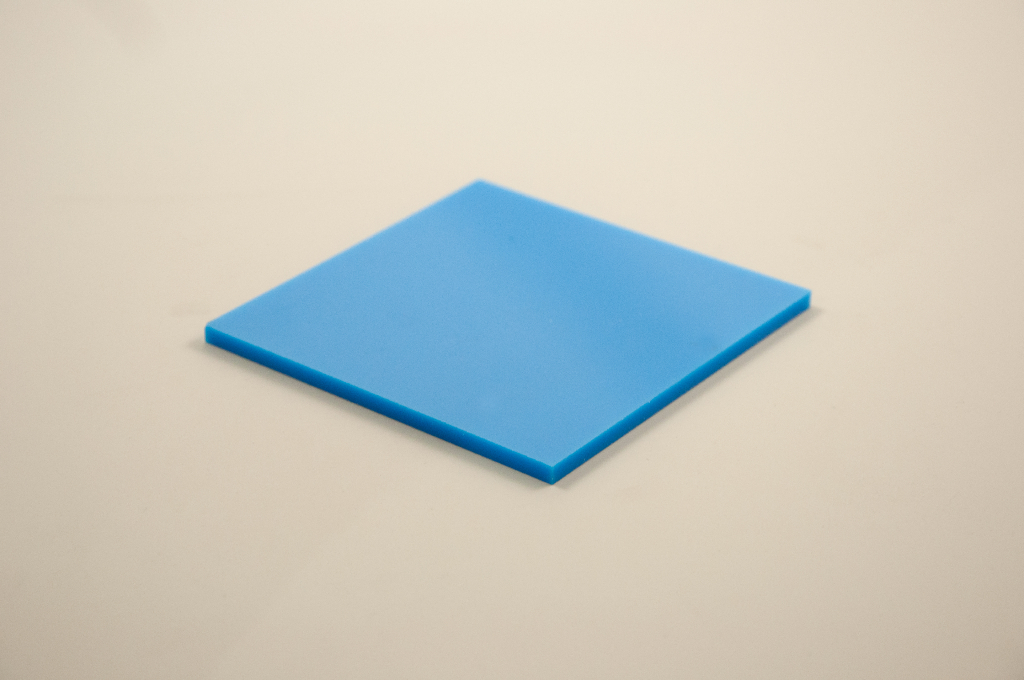

1. Sheets, Squares, and Rectangles

For flat shapes, calculate the volume using:

Volume = Length × Width × Thickness

Example:
For a polycarbonate sheet measuring 1m × 0.5m with a thickness of 5mm (0.005 m):

Volume = 1 × 0.5 × 0.005 = 0.0025m³

Weight = 0.0025 × 1200 = 3.0kg

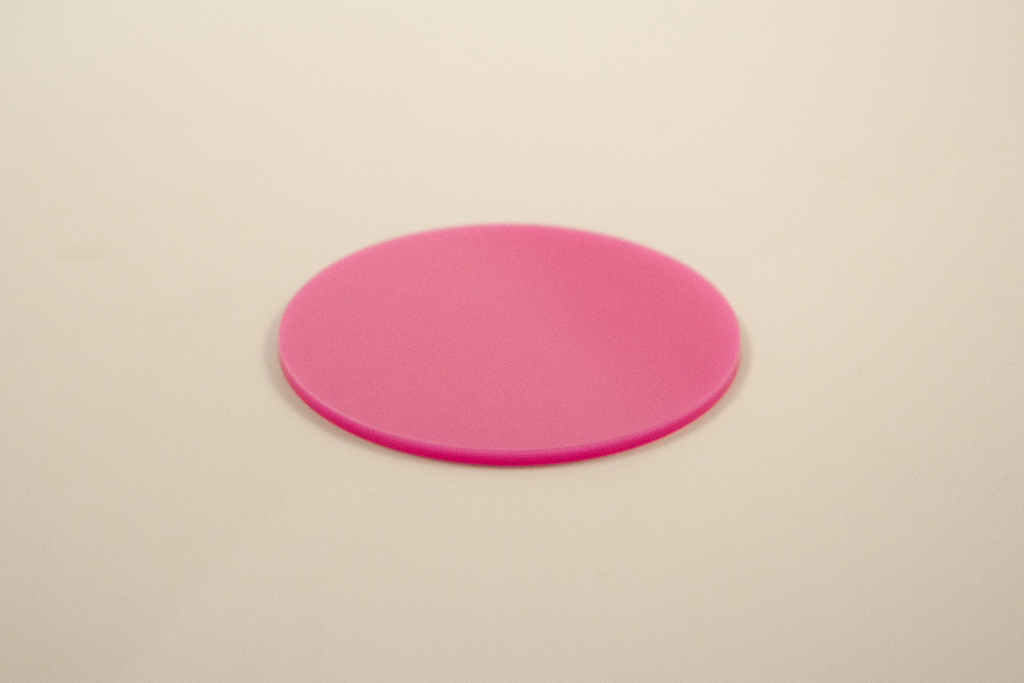

2. Circular Discs

For circular discs, calculate the area first:

Area = πr²

Then calculate the volume:

Volume = Area × Thickness

Example:
A PVC foam disc with a diameter of 20cm (radius = 10cm) and thickness of 2cm, assuming a density of 0.6g/cm³:

Area = π × 10² = 314.16cm²

Volume = 314.16 × 2 = 628.32cm³

Weight = 628.32 × 0.6 = 376.99g (or 0.377kg)

3. Solid Rods

For a solid rod (cylinder), calculate the volume:

Volume = πr²h

Where r is the radius, and h is the height (length).

Example:
A nylon rod with a diameter of 5cm (radius = 2.5cm) and length of 1m (100cm):

Volume = π × 2.5² × 100 = 1963.5cm³

Weight = 1963.5 × 1.14 = 2235.39g (or 2.235kg)

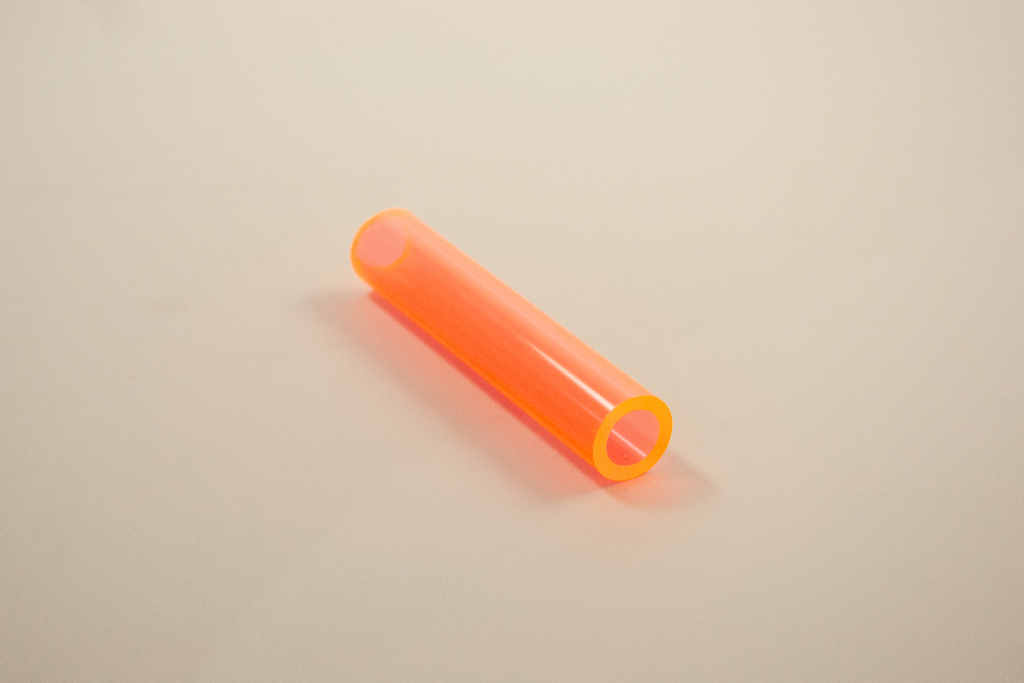

4. Hollow Tubes

For hollow tubes, calculate the volume of the outer cylinder and subtract the volume of the inner cylinder:

Volume = πh(r²_outer - r²_inner)

Example:
A polypropylene tube with an outer diameter of 10cm, inner diameter of 8cm, and length of 1m (100cm):

r_outer = 5cm, r_inner = 4cm

Volume = π × 100 × (5² - 4²) = π × 100 × (25 - 16) = 2827.43cm³

Weight = 2827.43 × 0.9 = 2544.69g (or 2.545kg)

5. ACM Panels

ACM (Aluminium Composite Material) panels are composite materials with layers of aluminum and plastic. Use an average density (typically ~1.2–1.5 g/cm³).

Example:
An ACM panel measuring 2m × 1m with a thickness of 4mm (0.004m):

Volume = 2 × 1 × 0.004 = 0.008m³

Weight = 0.008 × 1400(average density) = 11.2kg

Summary Table of Shapes and Formulas

Tips for Accurate Calculations

1. Verify Density: Always check the specific density for your material, as slight variations can occur between manufacturers.
2. Use Consistent Units: Convert all measurements to a single unit system (e.g., cm^³ for g/cm^³ or m^³ for kg/m^³).
3. Include Cutting Tolerances: For custom cuts, account for waste or slight deviations from theoretical dimensions.
4. Consult Manufacturer Data: Some suppliers provide weight-per-unit-area or specific guidance for their materials.

By applying these formulas and tips, you can calculate the weight of any plastic shape, from simple sheets to complex hollow tubes, accurately and efficiently.
