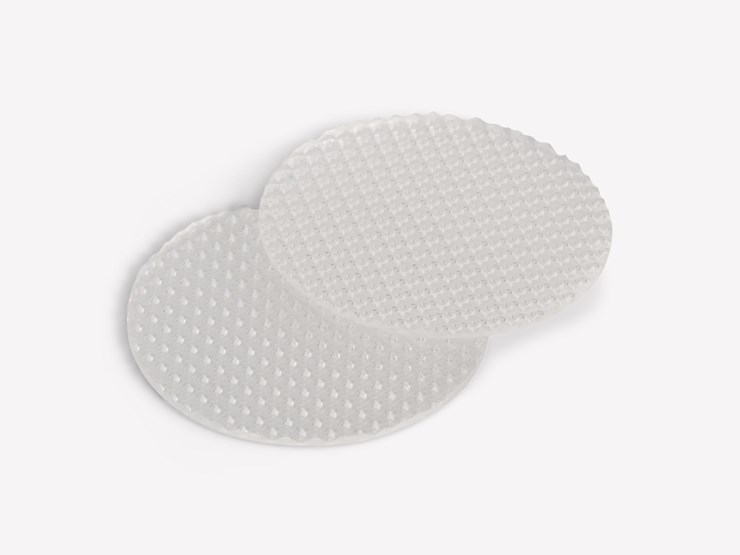

Prismatic Extruded Acrylic Disc
photo_size_select_smallCut to size
{{coloursLength}} Colours
From £{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }} £{{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }} {{ incVAT() ? incVATTranslation : exVATTranslation }} £{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }} {{ incVAT() ? incVATTranslation : exVATTranslation }}
From £{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }} £{{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }} {{ incVAT() ? incVATTranslation : exVATTranslation }} £{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }} {{ incVAT() ? incVATTranslation : exVATTranslation }}
Bespoke Fabrication
We have the machinery and expertise to manufacture bespoke items in acrylic, polycarbonate and many other plastics, from one-offs to large production runs. Read more about the various services we offer, or complete the form below to request a quote.
CNC Routing
Our advanced Multicam Apex 3R (3 Axis) CNC routers allow us to provide an extensive range of precision CNC routing services. Read more
CNC Laser Cutting
Laser cutting is a fabrication process that uses a thin, intensely focused stream of light to cut through a range of different materials, including plastics and acrylics. Read more
Diamond & Flame polishing
Edge polishing is a fabrication process that polishes the edges of acrylic panels, removes any cutting marks, and achieves a smooth, glossy finish. Read more
Rotary & Laser Engraving
Laser engraving is a fabrication process that uses a laser beam to physically remove the surface of a material to create an indentation that is noticeable to both the eye and touch. Read more
Line Bending
Line bending is a process that’s used to make precise folds in plastic and acrylic components. Our line bending fabrication service allows us to bend plastic and acrylic sheets along a defined ‘line’ – without any need for gluing or joining. Read more
Have bespoke requirements?
Complete this form and we will get back to you with a quote.
Prismatic extruded sheet with a textured pattern on one side is a lightweight, translucent material optimised for light transmission and diffusion making it a popular choice for lighting applications.
Key features
- Light diffusion
- Excellent light transmission
- Weather resistance
- Lightweight
- Impact resistance
Typical applications
- Lighting applications
- Skylight
- Interior partition/screen
- Exhibition display
- Interior decoration
- Exterior decoration material
Brands
Unbranded
Country of Manufacture
Various
Stock sheet sizes
2500mm x 1250mm
Minimum disc diameter
50mm
Maximum disc diameter
1240mm
Relative density
1.19 g/cm³
Manufacturers thickness tolerance
+/- 5% (e.g. 3mm Extruded acrylic sheet could vary from 2.85mm to 3.15mm)
Cutting tolerance
+/- 1mm
Material protection
Protective film on non textured side
Fire rating
UK class 4
Service temperature
-40°c to 80°c
Vicat softening temperature
>105°c
Water absorption
0.2%
Material Name / Scientific Name
Poly(methyl methacrylate) "PMMA"
Recyclable
Yes
Maximum recycled content
Maximum 25%
Light transmission
87%
