16mm & 25mm Corotherm Clear Polycarbonate Multiwall Roofing Sheet
photo_size_select_smallCut to size
{{coloursLength}} Colours
From £{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }} £{{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }} {{ incVAT() ? incVATTranslation : exVATTranslation }} £{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }} {{ incVAT() ? incVATTranslation : exVATTranslation }}
Bespoke Fabrication
We have the machinery and expertise to manufacture bespoke items in acrylic, polycarbonate and many other plastics, from one-offs to large production runs. Read more about the various services we offer, or complete the form below to request a quote.
CNC Routing
Our advanced Multicam Apex 3R (3 Axis) CNC routers allow us to provide an extensive range of precision CNC routing services. Read more
CNC Laser Cutting
Laser cutting is a fabrication process that uses a thin, intensely focused stream of light to cut through a range of different materials, including plastics and acrylics. Read more
Diamond & Flame polishing
Edge polishing is a fabrication process that polishes the edges of acrylic panels, removes any cutting marks, and achieves a smooth, glossy finish. Read more
Rotary & Laser Engraving
Laser engraving is a fabrication process that uses a laser beam to physically remove the surface of a material to create an indentation that is noticeable to both the eye and touch. Read more
Line Bending
Line bending is a process that’s used to make precise folds in plastic and acrylic components. Our line bending fabrication service allows us to bend plastic and acrylic sheets along a defined ‘line’ – without any need for gluing or joining. Read more
Have bespoke requirements?
Complete this form and we will get back to you with a quote.

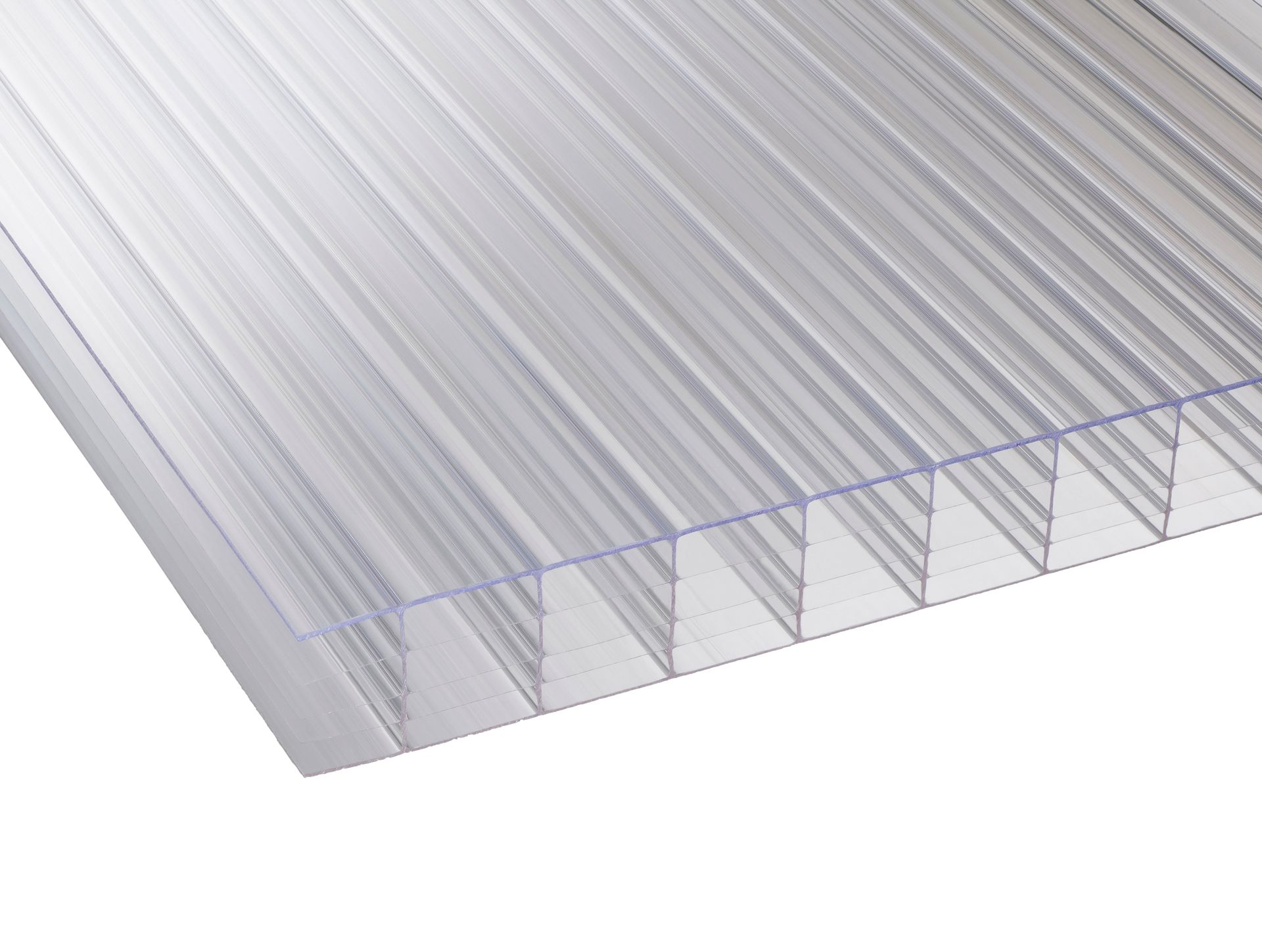

Clear Corotherm multiwall polycarbonate sheet is a lightweight insulating glazing sheet manufactured from damage resistant polycarbonate. Light in weight but rigid in structure, Corotherm multiwall roofing sheets used alongside the complete Corotherm range of fitting accessories offer an incredibly adaptable yet economical roofing or glazing solution. Clear multiwall polycarbonate sheeting is available in both 16mm and 25mm thicknesses.
Corotherm multiwall sheets are available in a range of standard sizes but can also be supplied cut to size ready for immediate installation.
Typical applications
- Lean-to extensions
- Car ports
- Conservatories
- Pergolas
- Gazebos
- Sun rooms
- Swimming pool covers
- Rooflights
- Canopies
- Walkways
Key features
- Order cut to size
- Part of the high quality Corotherm range
- Lightweight
- Rigid
- Hight structural strength
- High light transmission
- Good insulation
- Solor control
- Easy installation
- UV protection
The Corotherm Polycarbonate Roofing System
At Simply Plastics we stock and supply the Corotherm Polycarbonate Roofing System, also branded as Marlon ST, which is manufactured in the UK by Brett Martin. The range includes all of the components required to install a fully weatherproof and waterproof roof and it used by both professional fitters and DIY'ers alike.
Polycarbonate Roofing Sheet
Twinwall and Multiwall Polycarbonate sheet available in Clear, Opal and Bronze finishes in standard sheet sizes or cut to size.
Glazing Bar
Roofing Glazing Bars are fitted to rafters to support and join roofing sheets.
End Cap
Glazing Bar End Caps are fitted to the ends of glazing bars for a neat finish.
Side Flashing
Glazing Side Flashing is used to finish the side edges of the polycarbonate roofing sheet.
End Closure
The Roofing End Closure finishes the front edge of the roofing sheets.
Butyl Flashing
Butyl Wall Flashing Tape is applied where the roofing sheet meets the wall to prevent water entering the joint between the two surfaces.
Solid Tape
Solid Roofing Tape is used to cover and seal the open flutes at the end of the roofing sheets, it's specifically used to seal the end of the roofing sheet that meets the wall.
Breather Tape
Roofing Breather Tape is applied to the open edge of the bottom side of the roofing sheets. It creates a protective seal while permitting air to move freely in and out of the sheet, helping minimise condensation.
Description
Easy to handle and install
The Corotherm range is suitable for DIY installation. Corotherm polycarbonate roofing sheets and fitting accessories are all light in weight and easy to handle. If not ordering roofing sheets cut to size multiwall polycarbonate can be cut on site using a saw with a fine toothed blade.
Cut to Size
Take advantage of our cut to size service. Order Multiwall polycarbonate sheets cut to size, delivered to your door, ready for installation.
Please note - All multiwall and mulitiwall polycarbonate sheet ordered cut to size (rather than in standard sheet sizes) are supplied with the top edge sealed with Corotherm breather tape and the bottom edge sealed by Corotherm solid tape. Sheeting ordered in standard sizes rather than cut to size is supplied without tape with the flutes open. Breather tape and Solid tape should be applied to the open ends during installation.
Corotherm Range
Clear Multiwall Polycarbonate Sheet is part of the Corotherm range. The range includes various finishes of multiwall polycarbonate sheeting plus all to fixing accessories required to complete your project.
Lightweight
Light in weight but rigid and self-supporting. The multiwall stricture of the sheet creates it's rigidity, the amount of polycarbonate used to create the sheet is relatively low, keeping the weight and cost of the sheet down.
Light Transmission
Multiwall polycarbonate sheet offers excellent light transmission. Keep the elements out but let the natural light flood in. The clear option achieves light transmission in excess of 70%. The Bronze tint and Opal finishes offer differing levels of light transmission and diffusion to suit your requirements. Cut energy costs by utilizing natural light over artificial light.
Insulation
The multiwall structure of Corotherm sheet provides a thermally insulating glazing solution. Achieve U-values as low as 0.83W/m²K.
UV Protection
Corotherm has a layer UV protection which blocks 98% of harmful UV rays. UV protective glazing protects everything underneath from the damaging effects of the sun, be it people, animals or plants.
Manufacturer
Brett Martin
Brand
Corotherm (Marlon ST)
Structure
Multiwall (16mm - Triplewall, 25mm - 7xWall)
Sheet thickness
16mm, 25mm
Light transmission
62%
Specific gravity
1.2 g/cm³
Tensile strength at yield
>60 MPa
Tensile strength at break
>70 MPa
Modulus of elasticity
>2300 MPa
Softening temperature - Vicat ‘B’
148°C
Linear thermal expansion
6.8 x 10-5 m/m.K
Maximum service temperature
100°C
Fire rating
UK Class 1
Recyclable
Yes
Cutting tolerance
+/- 3mm
This product is dispatched directly from the manufacturer and delivered by a third-party courier, which results in a £36 delivery charge. Orders exceeding £1200 qualify for free delivery. The estimated delivery period is 5 working days.
All listed prices are inclusive of VAT.
For further information on delivery, including Europe and Remote areas please see Delivery information.
Can I collect my order from Simply Plastics?
Yes, of course. Orders can be collected from our premises in Colchester, Essex. At the final stage of the checkout process there is a delivery option labelled "Collection/pickup" which is free. Once your order is complete, you will be notified by email along with our address and collection times.
I need my order urgently, can I pay for faster shipping?
Yes. We offer an express delivery service which aims to deliver all orders in 1-3 working days. Orders are delivered by a recognised courier company and may require a signature on delivery.
What thickness multiwall polycarbonate sheet should I use?
Simply Plastics offer Marlon ST Polycarbonate multiwall sheet in thickness of 10mm, 16mm and 25mm to suit different applications.
Here are some example applications to guide your decision,
10mm - Garden Pergola, Vertica privacy glazing
16mm - Gazebos, Lean-tos, Carports
25mm - Large lean-to extensions, Garden buildings
Is it possible to cut twinwall and multiwall myself?
Yes, the walls of twinwall and multiwall polycarbonate sheets are very thin and therefore can easily be cut with a fine toothed saw. If you do choose to cut twinwall/multiwall roofing sheets yourself you should consider sealing the openings using breather tape or solid roofing tape.
What's the difference between twinwall and multiwall polycarbonate sheet?
Generally speaking twinwall refers to a product that has just two walls, whereas multiwall refers to any polycarbonate sheeting that has more than two walls.
We offer Marlon ST Sheet in the thicknesses and wall structures below,
10mm - Twinwall
16mm - Triplewall
25mm - x7 wall
What colour twinwall or multiwall polycarbonate sheet should I use?
We offer multiwall sheet in three finishes, Clear, Opal and Bronze. Each finish offers different benefits to suit different requirements.
Clear - High light transmission with most standard appearance
Opal - Lower light transmission provides increased privacy and heat reduction
Bronze - Reduces glare
What side of Marlon ST Multiwall sheeting is UV protected?
This should be clearly labelled on the protective film.
Which direction do the flutes run on twinwall and multiwall polycarbonate roofing sheets?
The flutes run parallel to the height of a sheet.
